A transverse wave on a rope has wavelength $λ$ and period $T$.

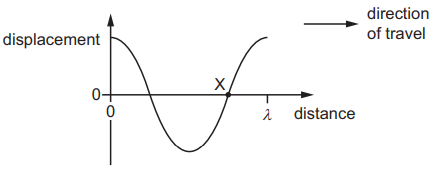

The graph shows the variation of the displacement of the particles of the rope with distance in the direction of travel of the wave at time $t = 0$.
A particle $X$ is labelled.

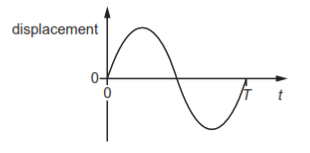

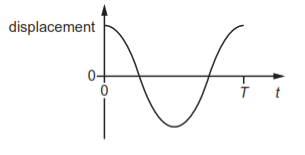

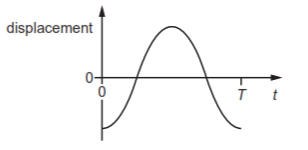

Which graph shows the variation of the displacement of particle $X$ with time $t$?
1 )
2 )
4 )
