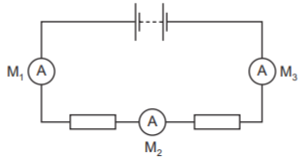

The diagram shows a battery connected to two identical resistors. Three ammeters ${M_1}$, ${M_2}$ and ${M_3}$ are connected in the circuit.
Meter ${M_1}$ reads 1.0A.
What are the readings on ${M_2}$ and on ${M_3}$?
1 )
reading on ${M_2}/A$:0.5 / reading on ${M_3}/A$:0.0
2 )
reading on ${M_2}/A$:0.5 / reading on ${M_3}/A$:0.5
3 )
reading on ${M_2}/A$:0.5 / reading on ${M_3}/A$:1.0
reading on ${M_2}/A$:1.0 / reading on ${M_3}/A$:1.0
