Excess calcium carbonate is added to 50 cm$^3$ of dilute hydrochloric acid of different concentrations in two separate experiments.
The volume of gas produced in experiment 1 and in experiment 2 is measured every 30 seconds.

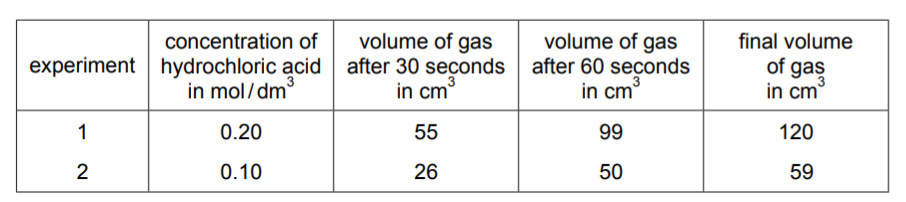

The results are shown.

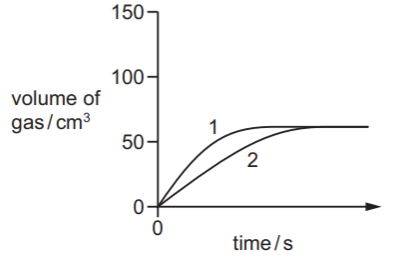

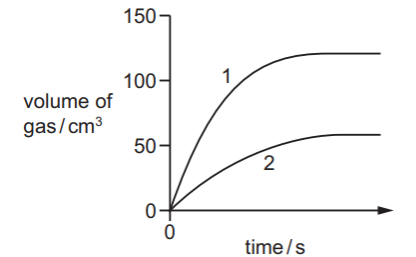

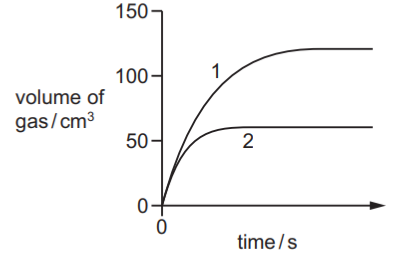

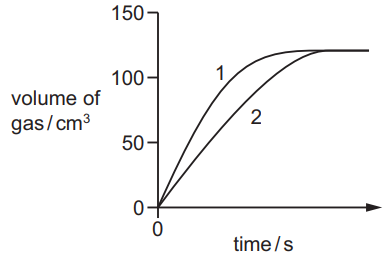

Which diagram represents the data collected?
1 )
3 )
4 )
